Schneider Electric VT2332G13U020 Valve Assembly 3/4 In 2W Zone Replacement MPN

Product Description

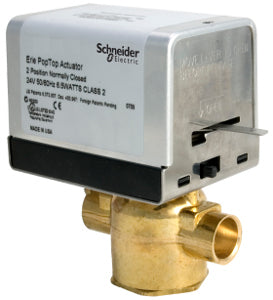

The Schneider Electric VT2332G13U020 is a valve assembly designed for use in heating and cooling systems. This two-way zone valve features a body size of twenty millimeters and operates with an electric actuator. The valve is suitable for controlling the flow of glycol and water at pressures up to forty PSI.

• Control Signal: 2-Position (On/Off)
• Protection Rating: NEMA 1
• Mechanical Movement: Rotary

Product Highlights

This valve assembly is ideal for applications requiring precise control over fluid flow in HVAC systems. It is suitable for use in residential and commercial environments where efficiency is critical.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Close-Off Pressure: 40 PSI
• Body Material: Brass
• Flow Coefficient: 2.5 cv
• Operating Fluid Temperature: 0-93 °C
• Power Input Voltage: 110 to 240 VAC
• Ambient Air Temperature for Operation: 0-93.3 °C
• Ambient Air Temperature for Storage: -40 to 71 °C
• Power Consumption in VA: 7.5 VA AC
• Valve Linkage: Tool-less connection
• Actuator Type: Electric
• Seating Seal Material: Brass
