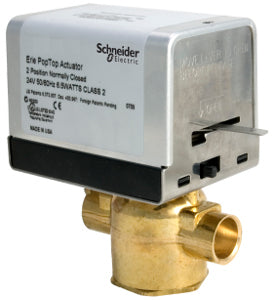

Schneider Electric VT2252G23A020 Valve Assembly 24 V AC (1/2 in Zone)

Product Description

The Schneider Electric VT2252G23A020 is a zone valve assembly designed for effective control in heating and cooling systems. It features a half-inch body size and a two-way configuration for versatile applications. The valve is suitable for use with glycol and water as the control media, making it ideal for various HVAC systems.

• Body Material: Brass
• Actuator Type: Electric, with a spring return feature
• Power Input Voltage: 24 VAC

Product Highlights

This valve assembly is crucial for hydraulic integration in mechanical systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 2.5 cv
• Close-Off Pressure: 40 PSI
• Control Signal: 2-Position (On/Off)
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1
• Operating Fluid Temperature: 0-93 degrees C
• Ambient Air Temperature for Operation: 0-93.3 degrees C
• Power Consumption: 7.5 VA AC
