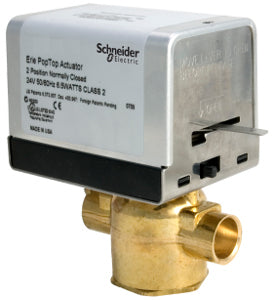

Schneider Electric VT2222G23A000 valve assembly 1/2 in 2W zone NPT

Product Description

The Schneider Electric VT2222G23A000 is a valve assembly designed for zone control. This assembly features a half inch body size and operates as a two-way valve. It connects using NPT fittings and is made from brass to ensure durability.

• Body Size: 1/2 inch
• Configuration: 2-Way
• Actuator Type: Electric

Product Highlights

This valve assembly is suitable for controlling the flow of glycol and water within HVAC systems. It operates at a close-off pressure of forty PSI and requires a twenty-four volt AC power input.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• Control Signal: 2-Position (On/Off)
• Flow Coefficient: 2.5 cv
• Control Media: Glycol 25 to 50% and Water
• Ambient Air Temperature For Operation: 0 to 93.3 °C
• Protection Rating: NEMA 1
• Material Trim: Brass
• Loss of Power Position: Normally Open
• Mechanical Movement: Rotary
