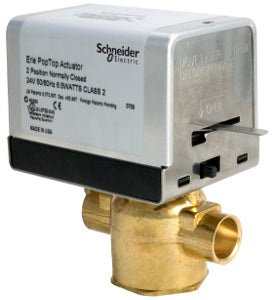

Schneider Electric VT2212G23U020 230V 2-Way Valve Assembly

Product Description

The Schneider Electric VT2212G23U020 is a two-way zone valve assembly designed for use in a variety of HVAC applications. This valve operates at 230 volts and features a sweat connection. It is suitable for controlling flow in heating systems and other setups where precise fluid management is necessary. Its robust design ensures reliable operation and ease of integration with existing systems.

• Body Size: 1/2 inches
• Configuration: 2-Way
• Power Input: 110 to 240 VAC

Product Highlights

This valve operates with glycol and water mixtures, and it is not suitable for steam applications. Its durable brass construction provides a long service life under typical operating conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Erie

Technical Specifications

• Flow Coefficient: 2.5 cv
• Close-Off Pressure: 40 PSI
• Control Signal: 2-Position (On/Off)
• Actuator Type: Electric
• Control Media: Glycol 25 to 50% and Water
• Operating Fluid Temperature: 0 to 93 degrees C
• Ambient Temperature Range: 0 to 93.3 degrees C
• Power Consumption: 7.5 VA AC
