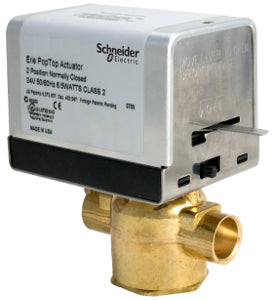

Schneider Electric VT2212G14D02A Valve Assembly 208 V AC 1/2 in

Product Description

Schneider Electric VT2212G14D02A is a zone valve assembly designed for use in various HVAC applications. The valve has a size of 1/2 inch and features a two-way configuration with sweat connection. This valve utilizes an electric actuator for precise control and operates at a power input voltage of 208 VAC. Not suitable for steam applications, it is ideal for managing fluid flow with glycol and water.

• Body Size: 1/2 inch
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)

Product Highlights

The VT2212G14D02A valve assembly provides reliable performance in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Type: Zone
• Connection Type: Sweat
• Flow Coefficient: 2.5 cv
• Close-Off Pressure: 40 PSI
• Mechanical Movement: Rotary
• Auxiliary Switch: 1 SPDT
• Operating Fluid Temperature: 0 to 93 °C
• Relative Humidity: 5-95% non-condensing
