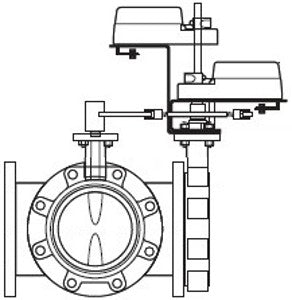

Schneider Electric VSUS-630C-E25D-L-15 Valve Actuator Assembly 5 in Butterfly

Product Description

The Schneider Electric VSUS-630C-E25D-L-15 is a robust valve actuator assembly designed for butterfly valves with a five-inch body size. This product features a three-way configuration for mixing and diverting fluids efficiently. The actuator type is electrical, ensuring reliable operation across various applications.

• Five-inch body size for compatibility with standard systems
• Electric actuator with a torque rating of 210 in-lb
• Flanged connection for easy installation

Product Highlights

This valve actuator is suitable for a variety of industrial applications, including HVAC and process control.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 5 in
• Flow Coefficient: 1376 cv
• Close-Off Pressure: 50 PSI
• Actuator Type: Electric
• Control Signal: Proportional 0 to 10 VDC, 4 to 20 mAdc
• Torque: 210 in-lb
• Power Input Voltage: 24 VAC/VDC
• Protection Rating: NEMA 2
