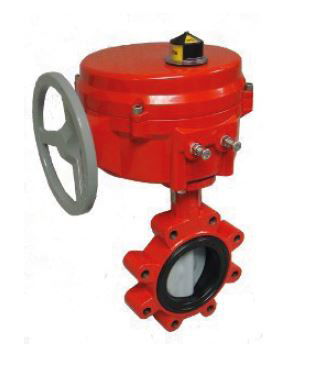

Schneider Electric VSUS-6200-F12-L-15 Valve Assembly 5 in 2-Way Butterfly

Product Description

The Schneider Electric VSUS-6200-F12-L-15 is a 5-inch valve assembly designed for reliable operation in various applications. This two-way butterfly valve features a flanged connection and is equipped with an electric actuator that uses proportional control. This product is engineered for industrial use, ensuring optimal performance.

• Body size: 5 inches
• Flow coefficient: 1376 cv
• Close-off pressure: 50 PSI

Product Highlights

This valve assembly is suitable for controlling fluid flow in HVAC and plumbing systems. It operates effectively within a temperature range of -40 to 121 degrees Celsius and provides a mechanical movement via a rotary actuator.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator type: Electric
• Power input voltage: 24 VAC
• Torque: 600 in-lb
• Protection rating: NEMA 4
• Operating fluid temperature: -40 to 121 °C
• Ambient air temperature for operation: -40 to 65.5 °C
• Control type: Automatic reset
• Seating material: EPDM
