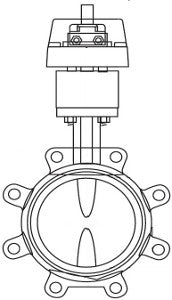

Schneider Electric VSUS-6200-E25-L-14 Valve Actuator Assembly 4 in Butterfly Replacement MPN

Product Description

The Schneider Electric VSUS-6200-E25-L-14 is a reliable valve actuator assembly designed for use in various fluid control applications. This product features a four-inch body size and a two-way butterfly valve configuration. The assembly connects via flanged connections and operates with electric control signals.

• Body Size: 4 inches
• Flow Coefficient: 841 cv
• Power Input Voltage: 24 VAC/VDC

Product Highlights

This valve actuator assembly is designed for automatic reset control, suitable for multiple operating conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way
• Type: Butterfly
• Material Disc: Ductile Iron - Nylon 11 Coated
• Close-Off Pressure: 50 PSI
• Torque: 210 in-lb
• Protection Rating: NEMA 2
• Control Signal: Proportional
• Loss of Power Position: Fail in place
• Ambient Air Temperature for Operation: -20 to 50 °C
• Seat Material: EPDM
