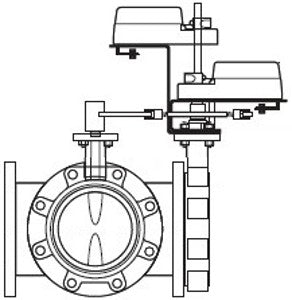

Schneider Electric VSU-630C-E25D-L-16 Butterfly Valve Actuator Assembly

Product Description

The Schneider Electric VSU-630C-E25D-L-16 is a butterfly valve actuator assembly designed for efficient operation in various applications. This assembly features a six-inch body size and a three-way mixing/diverting configuration.

• Body Size: 6 inches
• Type: Butterfly with Flanged Connection
• Actuator Type: Electric, Dual Actuator

Product Highlights

This valve assembly is suitable for automatic control with a power input voltage of 24 VAC/VDC. It has a flow coefficient of 1850 cv and can manage a close-off pressure of 50 PSI.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US
• Targeted Region: North America

Technical Specifications

• Body Style: Lug
• Material Disc: Ductile Iron with Nylon 11 Coating
• Control Signal: Proportional, 0 to 10 VDC, 4 to 20 mAdc
• Torque: 210 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature for Operation: -20 to 50 °C
• Seating Seal Material: EPDM
• Loss of Power Position: Fail in place
• Seat Leakage: Port A: Class V
