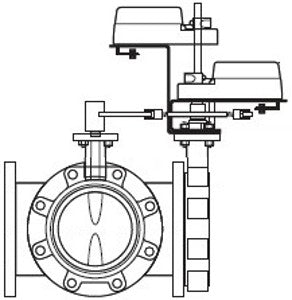

Schneider Electric VSU-630C-E25D-L-15 Butterfly Valve Assembly

Product Description

The Schneider Electric VSU-630C-E25D-L-15 is a butterfly valve assembly used in HVAC and plumbing systems for effective fluid control. This assembly features a five-inch body size and supports three-way mixing and diverting operations.

• Body Size: 5 inches
• Configuration: 3-Way Mixing/Diverting
• Actuator Type: Electric

Product Highlights

This valve assembly includes a dual actuator and is designed for automatic reset control. Its robust construction ensures reliability in various applications. Note: Not for use with steam.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 1376 cv
• Close-Off Pressure: 50 PSI
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC/VDC
• Torque: 210 in-lb
• Material Disc: Ductile Iron - Nylon 11 Coated
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
