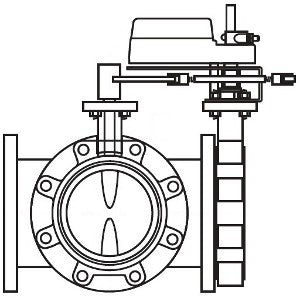

Schneider Electric VSU-630C-E25-L-14 valve-actuator assembly 24 VAC/VDC

Product Description

Schneider Electric VSU-630C-E25-L-14 is a valve-actuator assembly. This assembly features a four inch body size with a three-way mixing and diverting configuration. It is designed for automatic control and is compatible with various industrial applications.

• Body Size: 4 inches
• Actuator Type: Electric, Proportional Control
• Torque: 210 in-lb

Product Highlights

This valve actuator assembly is built for durability and efficiency. It is suitable for non-steam applications and has a NEMA 2 protection rating.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Close-Off Pressure: 50 PSI
• Flow Coefficient: 841 cv
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Material Disc: Ductile Iron - Nylon 11 Coated
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature For Operation: -20 to 50 °C
• Protection Rating: NEMA 2
• Torque: 210 in-lb
