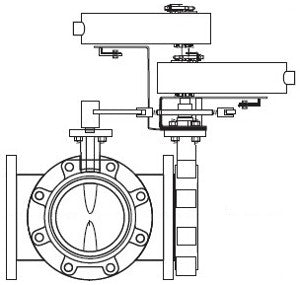

Schneider Electric VSFS-632C-556D-L-13 Valve Actuator Assembly

Product Description

The Schneider Electric VSFS-632C-556D-L-13 is a three-inch valve actuator assembly featuring a three-way mixing and diverting configuration. This valve is designed for use in various applications, including HVAC systems, allowing for efficient control of fluid flow. The electric actuator operates on twenty-four VAC or twenty-two to thirty VDC and supports proportional control signals.

• Body Size: 3 inches
• Material: Ductile Iron with Nylon 11 Coating
• Torque: 133 in-lb

Product Highlights

This valve assembly includes an electric actuator and operates in temperatures between negative forty and one hundred twenty-one degrees Celsius. It has a close-off pressure of one hundred seventy-five PSI and is equipped with dual actuators for enhanced performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country Origin: US

Technical Specifications

• Actuator Type: Rotary
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Operating Fluid Temperature: -40 to 121 °C
• Protection Rating: NEMA 1, NEMA 2
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Flow Coefficient: 461 cv
• Auxiliary Switch: 2 SPDT
• Weight: 38 lbs
