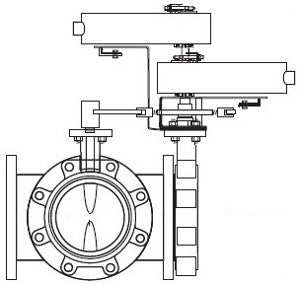

Schneider Electric VSFS-631C-556D-L-13 Valve Actuator Assembly 3 in

Product Description

Schneider Electric VSFS-631C-556D-L-13 is a valve actuator assembly designed for various industrial applications. The assembly features a three-inch body size and a three-way mixing/diverting configuration. This butterfly valve assembly is flanged, with a full disc shape made of ductile iron and nylon 11 coating. The flow coefficient of this actuator is 461 cv, and it can handle a close-off pressure of 175 PSI.

• Body Size: 3 inches
• Configuration: 3-Way Mixing/Diverting
• Actuator Type: Electric

Product Highlights

This valve assembly is suitable for various environments and allows for smart control with its proportional control signal. It operates on 24 VAC or a DC voltage range of 22 to 30 volts and comes with a rotary mechanical movement. The actuator is designed for automatic resetting, ensuring efficient operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Dynamic features: Torque of 133 in-lb
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Protection Rating: NEMA 1, NEMA 2
• Power Consumption: 9.8 VA AC, 7.4 W
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Operating Temperature: -30 to 60 °C
• Relative Humidity: 5 to 95 % non-condensing
• Seating Material: EPDM (ethylene propylene diene monomer)
