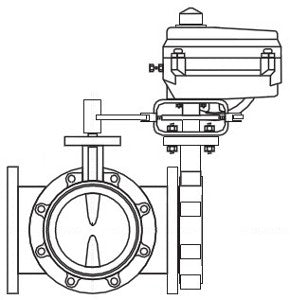

Schneider Electric VSFS-630C-F12-L-13 Valve Assembly 3 in 3-Way Mixing/Diverting

Product Description

Schneider Electric VSFS-630C-F12-L-13 is a valve assembly designed for a variety of fluid control applications. This model features a three-inch body size with a three-way mixing/diverting configuration. The actuator operates electronically using a proportional control signal. The assembly is made of ductile iron, nylon coated, and is rated for a maximum close-off pressure of one hundred seventy-five PSI.

• Body Size: 3 in
• Flow Coefficient: 461 cv
• Torque: 600 in-lb

Product Highlights

The valve assembly includes a full disc shape designed for efficient fluid flow. The actuator is a rotary type with a non-spring return system. This product is suitable for various installations in industrial settings.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VSFS-630C-F12-L-13

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Connection: Flanged
• Body Style: Lug
• Material Disc: Ductile Iron - Nylon 11 Coated
• Close-Off Pressure: 175 PSI
• Power Input Voltage: 24 VAC
• Protection Rating: NEMA 4
• Temperature Range: Ambient -40 to 65.5 °C, Operating -40 to 121 °C
