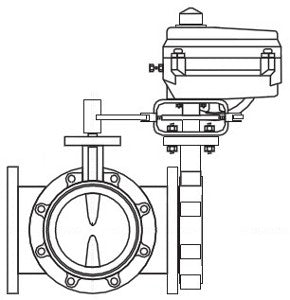

Schneider Electric VSFS-630C-E62-L-19 valve actuator assembly 12 in

Product Description

The Schneider Electric VSFS-630C-E62-L-19 is a valve actuator assembly designed for precise control in fluid management systems. This assembly includes a 12-inch butterfly valve that supports 3-way mixing and diverting functions. The actuator operates electrically, requiring a power input of 120 VAC and provides a fail-in-place feature on loss of power.

• Body Size: 12 inches
• Configuration: 3-Way Mixing/Diverting
• Type: Electric Butterfly Valve

Product Highlights

This valve actuator is suited for applications where reliable flow control and pressure regulation are crucial. It features robust materials and a compact design.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Actuator Type: Electric
• Flow Coefficient: 8077 cv
• Close-Off Pressure: 175 PSI
• Torque: 600 in-lb
• Control Signal Range: 0 to 10 VDC, 4 to 20 mA DC
• Material Disc: Ductile Iron with Nylon 11 Coating
• Auxiliary Switch: 2 SPDT
• NEMA Rating: NEMA 4
• Ambient Air Temperature for Operation: -40 to 65.5 °C
• Operating Fluid Temperature: -40 to 121 °C
