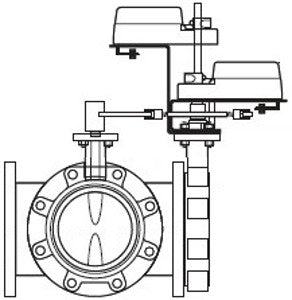

Schneider Electric VSFS-630C-E25D-L-14 Valve Actuator Assembly 4 in

Product Description

Schneider Electric VSFS-630C-E25D-L-14 is a valve actuator assembly designed for use in various applications. This assembly features a body size of four inches and a three-way mixing/diverting configuration. The actuator is electric and operates with a control signal that is proportional, making it suitable for precise flow control.

• 4-inch body size
• Electric actuator
• Flanged connection type

Product Highlights

The valve assembly includes a dual actuator and provides robust performance with a flow coefficient of 841 cv. It has a close-off pressure of 175 PSI and operates efficiently within a wide temperature range.

Product Information

Standard Information

• Body Material: Polyester coated cast iron
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Actuator Type: Electric
• Power Input Voltage: 24 VAC/VDC
• Torque: 210 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature for Operation: -20 to 50 °C
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
