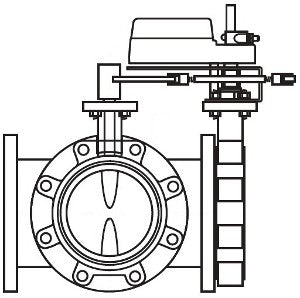

Schneider Electric VSFS-630C-E24-L-11 Valve Actuator Assembly 2 in

Product Description

Schneider Electric VSFS-630C-E24-L-11 is a valve actuator assembly designed for various applications. This device features a two-inch body size and operates using a three-way mixing/diverting configuration. Its actuator type is electric, ensuring easy integration into systems requiring proportional control.

• Body Size: 2 inches
• Flow Coefficient: 144 cv
• Power Input Voltage: 24 VAC/VDC

Product Highlights

This actuator assembly is suitable for automation in fluid control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Body Material: Polyester coated cast iron

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Torque: 210 in-lb
• Close-Off Pressure: 175 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature For Operation: -20 to 50 °C
• Auxiliary Switch: 2 SPDT
• Seat Material: EPDM
