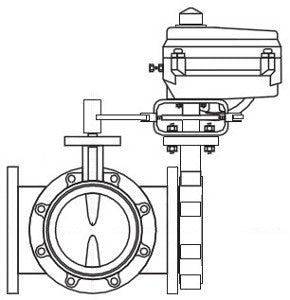

Schneider Electric VSFS-630C-E12-L-14 Butterfly Valve Assembly 4 in Full 841 cv

Product Description

The Schneider Electric VSFS-630C-E12-L-14 is a butterfly valve assembly designed for efficient flow management. This valve features a four-inch body size and is capable of three-way mixing and diverting. The actuator operates electrically and offers proportional control, making it suitable for various applications in HVAC and fluid management systems.

• Body Size: 4 inches
• Flow Coefficient: 841 cv
• Close-Off Pressure: 175 PSI

Product Highlights

This valve has a robust construction, featuring a ductile iron body with a nylon coating for durability. It operates efficiently within a temperature range of negative forty to one hundred twenty-one degrees Celsius. An essential feature is its fail-in-place position during a loss of power, ensuring system reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Actuator Type: Electric
• Control Signal: Proportional, 0 to 10 VDC, 4 to 20 mAdc
• Torque: 600 in-lb
• Ambient Air Temperature for Operation: -40 to 65.5 °C
• Material Disc: Ductile Iron - Nylon 11 Coated
• Protection Rating: NEMA 4
• Auxiliary Switch: 2 SPDT
