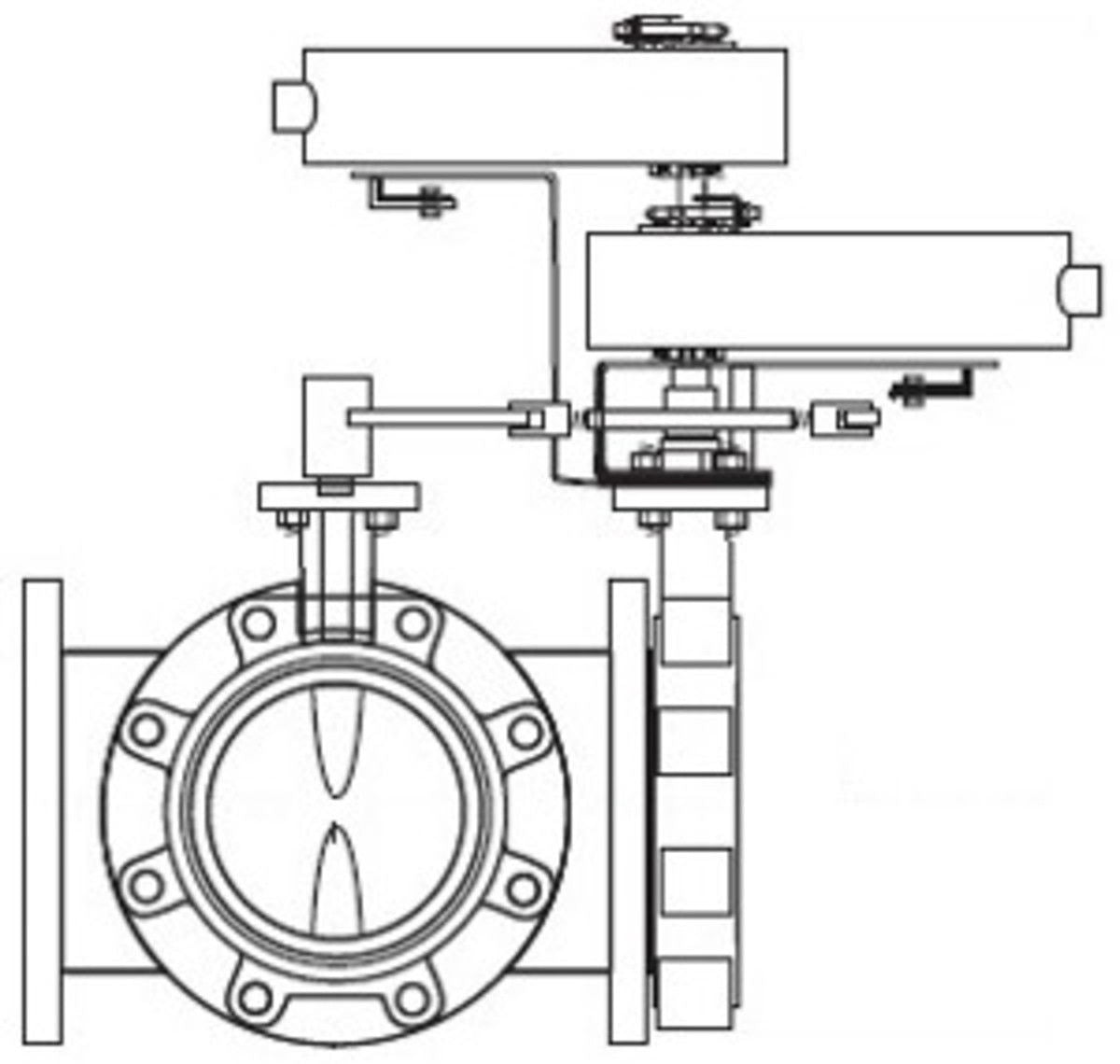

Schneider Electric VSF-632C-556D-L-13 valve actuator assembly 3 in

Product Description

Schneider Electric VSF-632C-556D-L-13 is a valve actuator assembly designed for reliable operation in HVAC systems. This unit features a three-inch body size and a three-way mixing/diverting configuration, making it ideal for controlling flow in various applications.

• Body Size: 3 inches
• Type: Butterfly with Flanged connection
• Actuator: Electric with a torque of 133 in-lb

Product Highlights

This valve assembly is suitable for non-steam applications and is driven by an electric actuator. It provides precise flow control with a robust structure.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Flow Coefficient: 461 cv
• Close-Off Pressure: 175 PSI
• Control Signal: Proportional, 2 to 10 VDC or 4 to 20 mA
• Loss of Power Type: Spring Return, Normally Closed
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Body Material: Polyester coated cast iron
• Ambient Temperature for Operation: -30 to 60 °C
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2
• Motor Type: Brushless DC motor
