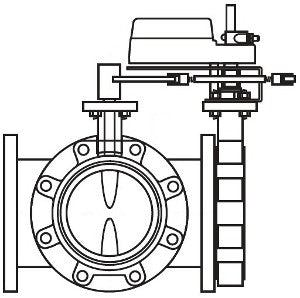

Schneider Electric VSF-630C-E25-L-13 valve-actuator assembly 3 in 3-Way Mixing/Diverting

Product Description

The Schneider Electric VSF-630C-E25-L-13 is a valve-actuator assembly designed for efficient fluid control. This unit features a three-inch body size and a 3-way mixing/diverting configuration, suitable for various applications in heating and cooling systems.

• Body Size: 3 inches
• Type: Butterfly Valve
• Flow Coefficient: 461 cv

Product Highlights

This product is designed with a full disc shape and features a ductile iron body that is nylon 11 coated. It operates with an electric actuator and offers proportional control capabilities.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VSF-630C-E25-L-13

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Close-Off Pressure: 175 PSI
• Power Input Voltage: 24 VAC/VDC
• Torque: 210 in-lb
• Control Signal: Proportional (0 to 10 VDC, 4 to 20 mAdc)
• Body Material: Polyester coated cast iron
• Actuator Type: Electric Rotary
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Duty Cycle: Non-Spring Return
