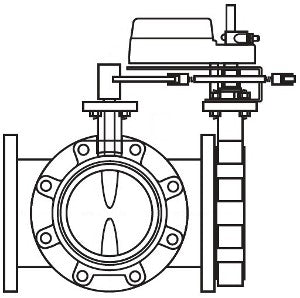

Schneider Electric VSF-630C-E24-L-11 Valve Actuator Assembly 3-Way Mixing/Diverting

Product Description

Schneider Electric VSF-630C-E24-L-11 is a three-way mixing and diverting valve actuator assembly. It features a two-inch body size and an electric actuator with a torque rating of 210 inch-pounds. This valve is designed to provide reliable performance in HVAC systems and other industrial applications.

• Body Size: 2 inches
• Type: Butterfly valve with full disc
• Configuration: 3-way mixing/diverting

Product Highlights

Ideal for automated systems requiring precise flow control.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Close-Off Pressure: 175 PSI
• Flow Coefficient: 144 cv
• Power Input Voltage: 24 VAC/VDC
• Control Signal: Proportional, 0 to 10 VDC, 4 to 20 mAdc
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature for Operation: -20 to 50 °C
