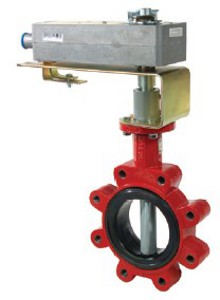

Schneider Electric VSF-6210-556-L-11 valve-actuator assembly 2 in butterfly valve

Product Description

The Schneider Electric VSF-6210-556-L-11 is a valve-actuator assembly designed for reliable control in various systems. This two-inch butterfly valve operates with an electric actuator, offering precise flow management. It is suitable for applications requiring robust performance and precise control.

• Body Size: 2 inches
• Flow Coefficient: 144 cv
• Power Input Voltage: 24 VAC or 22 to 30 VDC

Product Highlights

This valve assembly features a durable body made from ductile iron and is coated for enhanced resistance. Its spring-return function ensures it returns to a safe position upon power loss.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way
• Type: Butterfly
• Close-Off Pressure: 175 PSI
• Actuator Type: Electric
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
