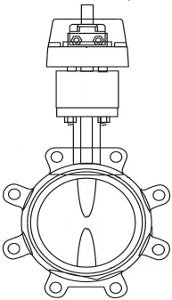

Schneider Electric VSF-6200-E24-L-12 - Valve-Actuator Assembly - 24 V AC/DC

Product Description

The Schneider Electric VSF-6200-E24-L-12 is a valve-actuator assembly designed for reliable operation in various applications. This product integrates a butterfly valve with an electric actuator, ensuring efficient flow control. The assembly features a two-and-a-half-inch body size and is suitable for flanged connections. It has a flow coefficient of 282 cv and a close-off pressure of 175 PSI.

• Body Size: 2-1/2 in
• Configuration: 2-Way
• Material Disc: Ductile Iron - Nylon 11 Coated

Product Highlights

This assembly supports maximum torque of 210 in-lb and operates on a power input voltage of 24 VAC/VDC. It is equipped with a terminal block for easy wiring and features a non-spring return actuator.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Style: Lug
• Disc Shape: Full
• Control Signal: Proportional
• Loss of Power Position: Fail in place
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature for Operation: -20 to 50 °C
• Control Type: Automatic reset
