Schneider Electric VS3417 Erie VS PopTop 3-Way On-Off Steam Zone Valve 1 Inch

Product Description

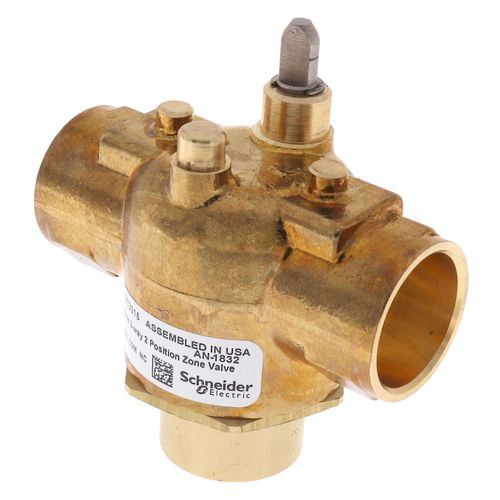

The Schneider Electric VS3417 Erie VS PopTop is a 3-way on-off steam zone valve designed for efficient control of fluid flow. This valve has a nominal size of 1 inch and is compatible with sweat connections. It operates effectively within a water temperature range of thirty-two to two hundred fifty degrees Fahrenheit. The forged brass body ensures durability and reliability in various heating applications.

• Directly replaces existing 2-position PopTop valves.
• Hysteresis synchronous motor for longevity and performance.
• Valve rated for 300 psi static pressure.

Product Highlights

This valve features an easy actuator installation with manual override capabilities, making it suitable for low-pressure steam applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• MPN: VS3417

Technical Specifications

• Type: 3-Way, On-Off Steam
• Material: Forged Brass Body, Brass Trim
• End Style: Sweat
• Nominal Size: 1 Inch
• Water Temperature: 32 - 250 deg F
• Coefficient of Volume: 8 Cv
