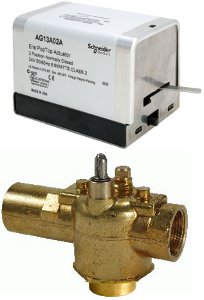

Schneider Electric VS3342G14B020 Valve Assembly 3-Way Mixing/Diverting 3/4 In Flare

Product Description

The Schneider Electric VS3342G14B020 is a valve assembly designed for efficient control in heating applications. This 3/4 inch, three-way mixing and diverting valve provides reliable performance in various settings. The high-quality construction ensures durability and longevity in demanding environments.

• Body Size: 3/4 inches
• Flow Coefficient: 3 cv
• Power Input Voltage: 110 to 120 VAC

Product Highlights

The VS3342G14B020 is ideal for zone applications, designed to control flow of glycol, steam, and water.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Close-Off Pressure: 40 PSI
• Actuator Type: Electric with Spring Return
• Control Signal: 2-Position (On/Off)
• Material: Forged Brass
• Retention Class: Class IV Seat Leakage
• Protection Rating: NEMA 1
• Flow Media: Glycol, Steam, Water
