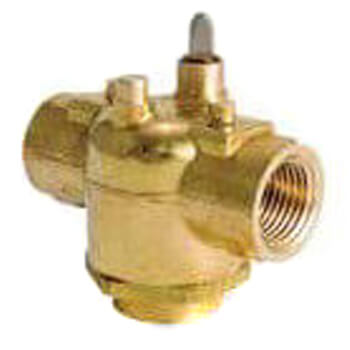

Schneider Electric VS3327 3/4 NPT Steam 3-Way Valve Body (7.5 Cv)

Product Description

The Schneider Electric VS3327 is a 3/4 inch, three-way mixing and diverting valve body designed for steam applications. It is part of the Erie PopTop product line, known for its easy installation and reliable performance. The valve body is compatible with high-temperature actuators.

• Body Size: 3/4 inches
• Flow Coefficient: 7.5 Cv
• Connection Type: NPT

Product Highlights

This valve body is equipped to handle glycol and steam with a maximum operating temperature range of zero to ninety-three degrees Celsius. Its brass construction ensures durability and longevity in various heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Control Media: Glycol 25% to 50%, Steam and Water
• Material Trim: Brass
• Saturated Steam Temperature: Up to 121 degrees Celsius
• Seat Leakage: Class IV (0.01%)
• Weight: 1.9 lbs
• Height: 5.08 cm
• Width: 7.62 cm
• Length: 7.62 cm
