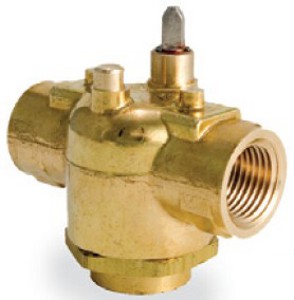

Schneider Electric VS3323 Valve Body 3/4 in NPT Erie PopTop

Product Description

The Schneider Electric VS3323 is a valve body designed for various applications. It features a three-quarter inch size and operates as a three-way mixing and diverting valve. The unit connects using NPT and is made of forged brass for durability.

• Body Size: 3/4 inches
• Flow Coefficient: 4 Cv
• Control Media: Glycol, Steam, and Water

Product Highlights

This valve is suitable for controlling fluids in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Body Material: Forged Brass
• Operating Fluid Temperature: Zero to ninety-three degrees Celsius
• Saturated Steam Temperature: Zero to one hundred twenty-one degrees Celsius
• Seat Leakage: Port A: Class IV (0.01 %)
• Seating Seal Material: Brass
• Country of Origin: US
• Product Type: Valve
