Schneider Electric VS3313 3/4 in 3W Mix/Div Zone Valve Body (Erie PopTop)

Product Description

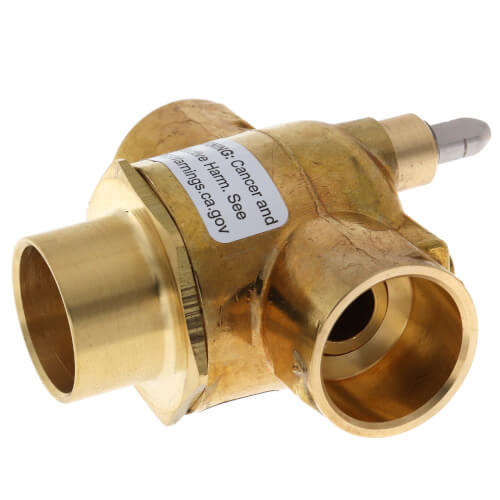

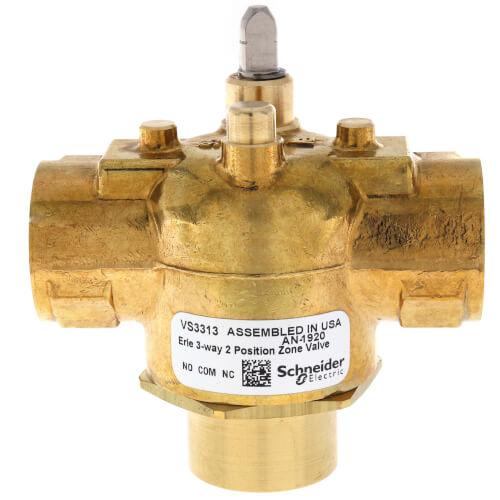

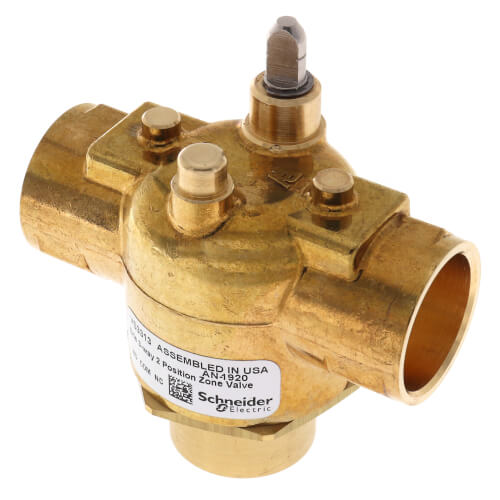

Schneider Electric presents the VS3313, a 3/4 inch zone valve body designed for versatile heating and cooling systems. This valve features a three-way configuration that allows for fluid mixing and diverting. It connects using sweat fittings and is made of forged brass for durability. The VS3313 is suitable for glycol solutions and steam or water applications.

• Body Size: 3/4 inches
• Flow Coefficient: 4 Cv
• Material Trim: Brass

Product Highlights

This valve is ideal for HVAC systems requiring precise temperature and fluid control.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS3313

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Control Media: Glycol 25 to 50%, Steam and Water
• Operating Fluid Temperature: 0-93 degrees Celsius
• Saturated Steam Temperature: 0-121 degrees Celsius
• Seat Leakage: Class IV (0.01%)
• Body Material: Forged Brass
