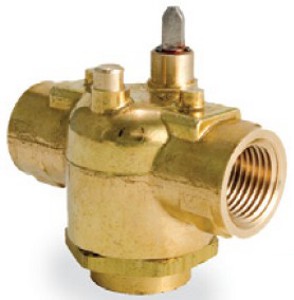

Schneider Electric VS3221 Valve Body 1/2 in 3-Way Mixing/Diverting Replacement MPN

Product Description

The Schneider Electric VS3221 is a 1/2 inch valve body designed for mixing and diverting applications. It functions effectively in zone control systems and is suitable for various fluids, including steam and glycol solutions. The built-in flow coefficient of 1.5 Cv ensures efficient operation in heating and cooling applications.

• Body Size: 1/2 inch
• Configuration: 3-Way Mixing/Diverting
• Type: Zone Control

Product Highlights

This valve body is a part of the Erie PopTop product line by Schneider Electric and features a brass construction that provides durability and reliability. The valve is compatible with all standard NPT connections and is engineered to operate efficiently with a variety of media.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Forged brass
• Flow Coefficient: 1.5 Cv
• Control Media: Glycol 25 to 50%, Steam, and Water
• Operating Fluid Temperature: 0 to 93 °C
• Saturated Steam Temperature: 0 to 121 °C
• Seat Leakage: Class IV (0.01 %)
• Seat Material: Brass
