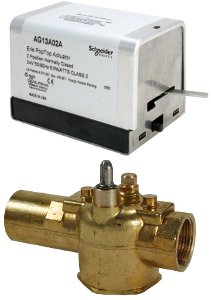

Schneider Electric VS2341G14A020 Valve Assembly 3/4 In Zone Valve 24 V AC

Product Description

The Schneider Electric VS2341G14A020 is a valve assembly designed for efficient control of fluid processes in HVAC systems. This zone valve features a three-quarter inch body size and operates as a two-way valve, ensuring reliable performance in various applications.

• Body Size: 3/4 inch
• Control Signal: 2-Position
• Power Input Voltage: 24 VAC

Product Highlights

This electric valve actuator is ideal for managing heating and cooling zones in mechanical systems, effectively controlling glycol, steam, and water media.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• Control Type: Automatic reset
• Close-Off Pressure: 60 PSI
• Actuator Type: Electric
• Ambient Air Temperature For Operation: 0 to 121.1 °C
• Protection Rating: NEMA 1
• Mechanical Movement: Rotary
• Weight: 950 g
• Material: Forged brass
• Flow Coefficient: 1 cv
• Control Media: Glycol 25 to 50%, Steam and Water
