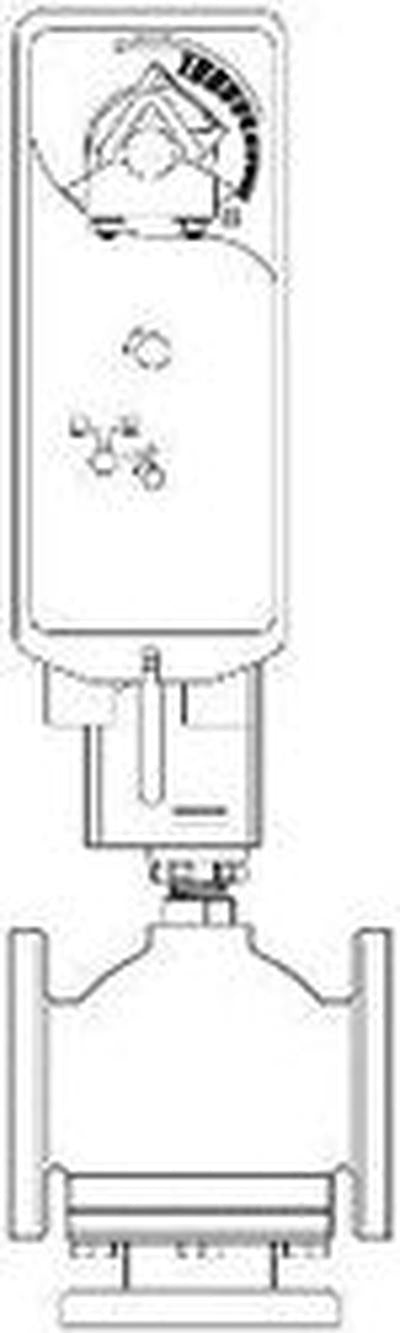

Schneider Electric VS-9313-556-5-14 Valve Actuator Assembly 3W Mix N/A

Product Description

The Schneider Electric VS-9313-556-5-14 is a valve actuator assembly designed for mixing applications. It features a four-inch body size and is crafted for effective control using a rotary mechanical movement.

• Body Size: 4 inches
• Type: Electric with Spring Return
• Torque: 133 in-lb

Product Highlights

This actuator provides precise control with a flow coefficient of 170 cv and operates under a close-off pressure of 12 PSI.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Power Input Voltage: 24 VAC/VDC
• Control Signal: Proportional (2 to 10 VDC, 4 to 20 mA DC)
• Torque: 133 in-lb
• Operating Fluid Temperature: 4-149 °C
• Protection Rating: NEMA 1, NEMA 2
• Weight: 9.8 VA AC
• Ambient Temperature for Operation: -30-60 °C
• Current Consumption: 280 mA
