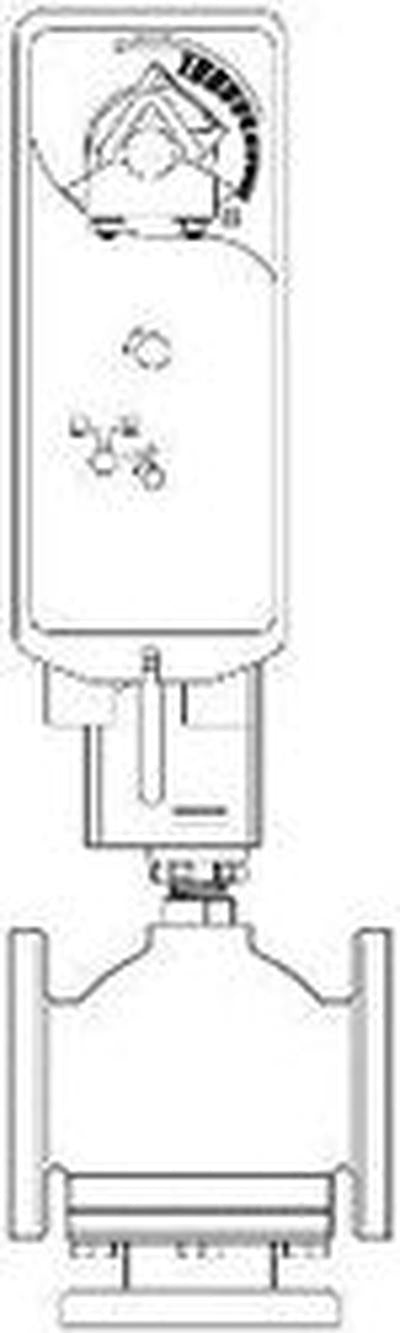

Schneider Electric VS-9313-556-5-12 Valve Actuator Assembly 2-1/2 in 3-Way Mixing
Schneider Electric VS-9313-556-5-12 Valve Actuator Assembly 2-1/2 in 3-Way Mixing

Schneider Electric VS-9313-556-5-12 Valve Actuator Assembly 2-1/2 in 3-Way Mixing

Brand: SCHNEIDER ELECTRIC
SKU: VS-9313-556-5-12
Availability: In Stock
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$1,843.82
$1,843.82
LTL Delivery

This product weighs 60 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Schneider Electric offers the VS-9313-556-5-12 valve actuator assembly designed for effective flow management in various applications. This model features a two and one-half inch body size and operates using a three-way mixing configuration.

  • Body Size: 2-1/2 in
  • Actuator Type: Electric with rotary mechanical movement
  • Flow Coefficient: 74 cv

Product Highlights

This valve actuator assembly is ideal for operations requiring reliable control in HVAC systems and other settings.

Product Information

Standard Information

  • Manufacturer: Schneider Electric
  • Country of Origin: US

Technical Specifications

  • Power Input Voltage: 24 VAC/VDC
  • Close-Off Pressure: 33 PSI
  • Torque: 133 in-lb
  • Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
  • Ambient Air Temperature for Operation: -30 to 60 °C
  • Flow Pattern: Spring Return Normally Closed
  • Material: Die cast aluminum housing with brass trim
  • Protection Rating: NEMA 1, NEMA 2
