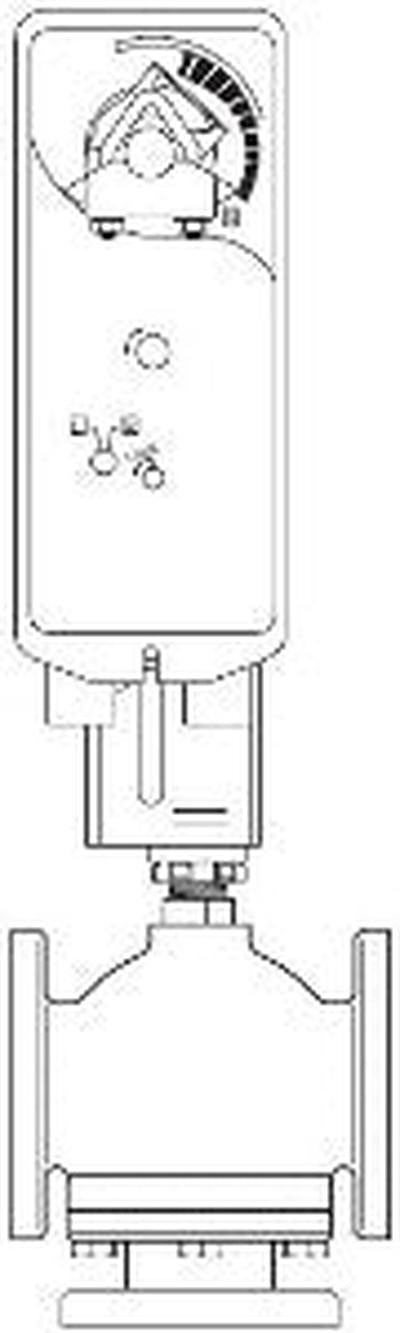

Schneider Electric VS-9313-547-5-14 Valve Actuator Assembly 4 In Globe Valve

Product Description

Schneider Electric VS-9313-547-5-14 is a valve actuator assembly designed for automatic flow control in various systems. This unit features a four-inch size with a three-way mixing configuration. It is ideal for applications requiring precise control of fluid flow.

• Body Size: 4 inches
• Configuration: 3-Way Mixing
• Type: Globe Valve

Product Highlights

This valve actuator assembly has a flow coefficient of 170 cv and operates at a close-off pressure of 9 PSI. The actuator type is electric, providing proportional control with a range of 2 to 10 VDC or 4 to 20 mA DC.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-9313-547-5-14

Technical Specifications

• Material Trim: Brass
• Control Type: Automatic Reset
• Torque: 133 in-lb
• Power Input Voltage: 22 to 30 VDC, 24 VAC
• Mechanical Movement: Rotary
• Operating Fluid Temperature: 4-149 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5-95% non-condensing
