Schneider Electric VS-9313-547-5-13 Valve Actuator Assembly 3 in 3-Way Mix Replacement MPN

Product Description

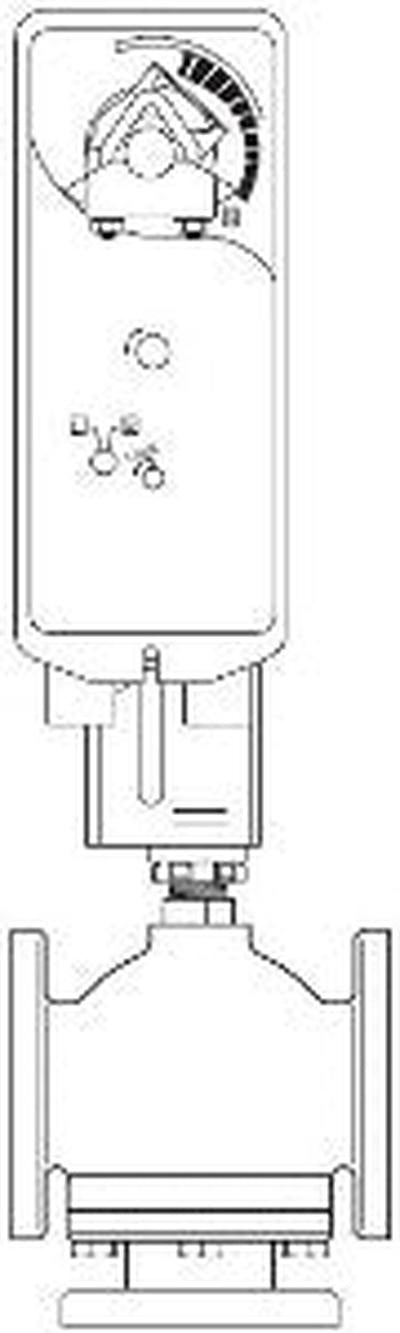

The Schneider Electric VS-9313-547-5-13 is a valve actuator assembly designed for precise control in flow regulation. This model features a three-inch body size and a three-way mixing configuration. Its dependable electric actuator provides reliable operation for heating and cooling systems.

• Body Size: 3 inches
• Flow Coefficient: 101 cv
• Power Input Voltage: 24 VAC, 22 to 30 VDC

Product Highlights

This valve actuator is engineered for effective fluid control in various applications and ensures optimal performance in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-9313-547-5-13

Technical Specifications

• Configuration: 3-Way Mixing
• Type: Globe
• Material Trim: Brass
• Close-Off Pressure: 16 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Torque: 133 in-lb
• Operating Fluid Temperature: 4-149 °C
• Relative Humidity: 5-95% non-condensing
