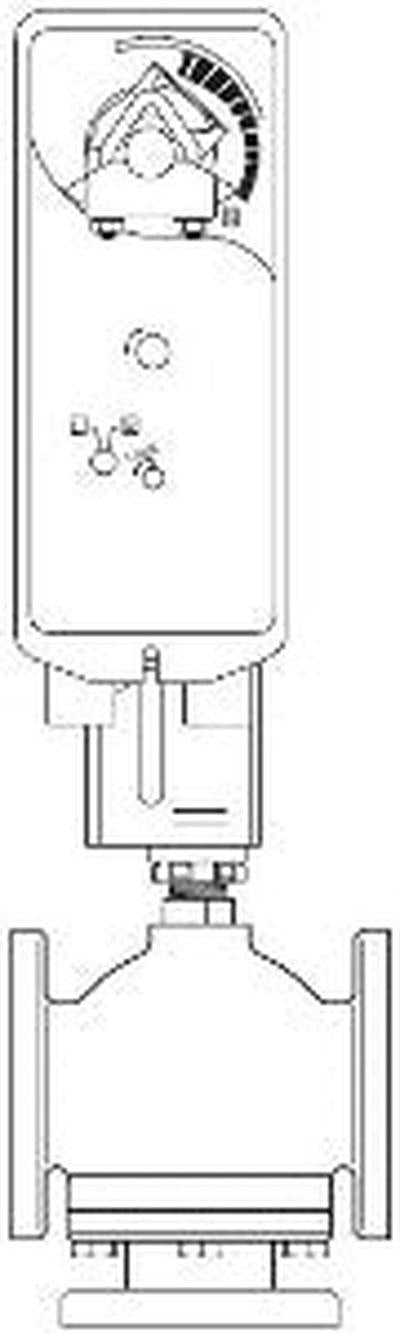

Schneider Electric VS-9313-547-5-12 Valve Actuator Assembly 24 VAC/DC

Product Description

The Schneider Electric VS-9313-547-5-12 is a valve actuator assembly designed for reliable performance in HVAC systems. This product features a 2-1/2 inches body size and a three-way mixing configuration. It utilizes a globe valve type with flanged connections, ensuring secure installation and operation.

• Body Size: 2-1/2 inches
• Configuration: 3-Way Mixing
• Actuator Type: Electric with spring return

Product Highlights

This actuator assembly is engineered for robust control in various applications, including dampers and globe valves. It operates with a flow coefficient of seventy-four cv and has a close-off pressure of thirty-three PSI. The input voltage ranges from twenty-two to thirty volts DC, or twenty-four VAC.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Power Input Voltage: 22 to 30 VDC, 24 VAC
• Torque: 133 in-lb
• Control Signal: Proportional, 2 to 10 VDC, or 4 to 20 mA DC
• Current Consumption: 170 mA
• Operating Fluid Temperature: 4-149 °C
• Mechanical Movement: Rotary
• Relative Humidity: 5-95 % non-condensing
• Ambient Air Temperature For Operation: -30 to 60 °C
