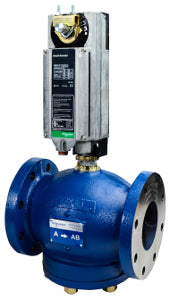

Schneider Electric VS-8213-576-5-16 Valve Actuator Assembly 6 in

Product Description

Schneider Electric VS-8213-576-5-16 is a valve actuator assembly designed for reliable and efficient control in HVAC systems. This assembly features a six-inch globe valve for optimal flow management.

• Body Size: 6 in
• Configuration: 2-Way
• Actuator Type: Electric

Product Highlights

This product is ideal for commercial and industrial applications, ensuring precise automation and control of fluid flow. The electric actuator operates with a control signal that ranges from 2 to 10 VDC and 4 to 20 mAdc, making it suitable for various system types.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-8213-576-5-16

Technical Specifications

• Flow Coefficient: 370 cv
• Close-Off Pressure: 125 PSI
• Power Input Voltage: 24 VAC/VDC
• Torque: 150 in-lb
• Material Trim: Brass
• Control Signal Type: Proportional
• Protection Rating: NEMA 1, NEMA 4
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature For Operation: -31.6 to 60 °C
