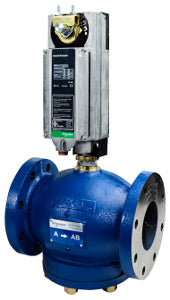

Schneider Electric VS-8213-576-5-14 Valve Actuator Assembly 4 In

Product Description

The Schneider Electric VS-8213-576-5-14 is a valve actuator assembly designed for reliable performance in various applications. This product features a four-inch body size and a two-way globe configuration.

• Material: Brass / Cast Iron
• Power Input: 24 VAC/VDC
• Control Signal: Proportional, 2 to 10 VDC

Product Highlights

This actuator offers robust construction and precise control for flow management. The rotary mechanism allows for quick and effective valve adjustments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Size: 4 inches
• Configuration: 2-Way
• Flow Coefficient: 145 cv
• Close-Off Pressure: 125 PSI
• Actuator Type: Electric
• Control Signal Range: 2 to 10 VDC / 4 to 20 mAdc
• Torque: 150 in-lb
• Protection Rating: NEMA 1, NEMA 4
• Ambient Temperature for Operation: -31.6 to 60 °C
• Operating Fluid Temperature: -7 to 138 °C
• Electrical Insulation Class: Class II
• Duty Cycle: 1
