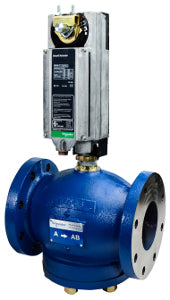

Schneider Electric VS-8213-576-5-13 Valve Actuator Assembly 3 in

Product Description

The Schneider Electric VS-8213-576-5-13 is a valve actuator assembly designed for precise flow control. With a body size of three inches, this two-way globe valve is suitable for various applications. The valve features a flanged connection and functions with an electric actuator.

• Body Size: 3 inches
• Flow Coefficient: 85 cv
• Power Input Voltage: 24 VAC/VDC

Product Highlights

This valve actuator assembly provides reliable operation in demanding environments. The actuator is designed to minimize power consumption while ensuring performance. Ideal for HVAC, plumbing, and industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Cast iron
• Connection Type: Flanged
• Max Close-Off Pressure: 125 PSI
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Operating Fluid Temperature: -7 to 138 °C
• Torque: 150 in-lb
• Protection Rating: NEMA 1, NEMA 4
• Ambient Temperature Range: -31.6 to 60 °C
