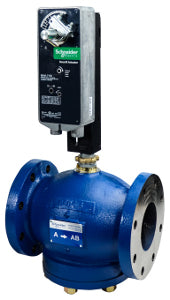

Schneider Electric VS-8213-556-5-16 Valve Actuator Assembly 6 In 2-Way Globe

Product Description

Schneider Electric VS-8213-556-5-16 is a valve actuator assembly designed for efficient control of fluid flow in various applications. This product features a six-inch body size and operates as a two-way globe valve. The actuator type is electric, ensuring reliable operation in demanding environments.

• Body Size: 6 inches
• Connection Type: Flanged
• Control Signal: Proportional

Product Highlights

Ideal for applications involving globe valves and dampers, this actuator assembly provides consistent and precise control over flow conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Type: Globe
• Flow Coefficient: 370 cv
• Close-Off Pressure: 125 PSI
• Power Input Voltage: 24 VAC/VDC
• Torque Rating: 133 in-lb
• Operating Temperature: -7 to 138 °C
• Protection Rating: NEMA 1, NEMA 2
• Electrical Insulation Class: Class II
• Current Consumption: 280 mA
• Control Signal Range: 2 to 10 VDC, 4 to 20 mA DC
