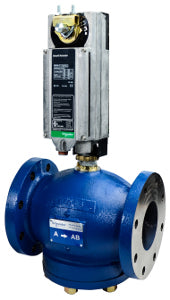

Schneider Electric VS-8213-516-5-16 Globe Valve Assembly 6 in Replacement MPN

Product Description

The Schneider Electric VS-8213-516-5-16 is a globe valve assembly designed for various applications in HVAC systems. This valve features a six-inch body size with a two-way configuration, ensuring efficient fluid control. The actuator type is electric, allowing for precise control using proportional signals.

• Body Size: 6 inches
• Configuration: Two-way
• Material Trim: Brass

Product Highlights

This valve assembly is built for durability and performance in demanding environments. The fail-in-place design ensures safety during power loss, while its rotary actuator provides effective control. It operates effectively within a temperature range that supports various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-8213-516-5-16

Technical Specifications

• Flow Coefficient: 370 cv
• Close-Off Pressure: 125 PSI
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC/VDC
• Torque: 300 in-lb
• Protection Rating: NEMA 1, NEMA 4
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -31.6 to 60 °C
