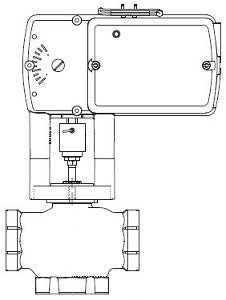

Schneider Electric VS-7323-804-4-04 Globe Valve Actuator Assembly

Product Description

Schneider Electric VS-7323-804-4-04 is a globe valve actuator assembly designed for automatic control applications. This valve features a body size of one-half inches and operates as a three-way diverting valve. It provides efficient fluid control for various heating and cooling systems.

• Body Size: 1/2 in
• Configuration: 3-Way Diverting
• Type: Globe

Product Highlights

This valve actuator assembly utilizes a proportional control signal and has a close-off pressure rating of 250 PSI. It delivers a flow coefficient of 4.4 cv, suitable for precise flow management.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Brass
• Control Signal Range: 2 to 10 VDC
• Power Input Voltage: 24 VAC/VDC
• Force: 105 lbf
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature For Operation: -30 to 60 °C
• Relative Humidity: 5 to 95 % non-condensing
