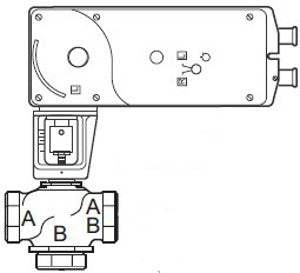

Schneider Electric VS-7323-593-4-10 Valve Assembly

Product Description

Schneider Electric VS-7323-593-4-10 is a globe valve assembly featuring a one and a half inch size and a three-way diverting configuration. This electric actuator is designed to manage fluid flow effectively in various applications.

• Body Size: 1-1/2 inches
• Configuration: 3-Way Diverting
• Close-Off Pressure: 250 PSI

Product Highlights

This valve is not suitable for steam use and has a spring return in case of power loss. The actuator type is electric, and control signals can vary between two to ten VDC or four to twenty mA.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 28 cv
• Power Input Voltage: 24 VAC/VDC
• Operating Fluid Temperature: -7 to 138 °C
• Rated Supply Voltage: 22 to 30 VDC or 24 VAC/DC
• Material Trim: Brass
• Stroke Running Time: N/A
• Mechanical Movement: Linear
• Force: 220 lbf
