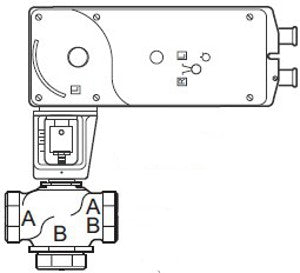

Schneider Electric VS-7323-593-4-09 Valve Assembly 1-1/4 in

Product Description

The Schneider Electric VS-7323-593-4-09 is a valve assembly designed for efficient fluid control in various applications. It features a 1-1/4 inch body size and a three-way diverting configuration. The globe type valve utilizes an NPT connection and is constructed with brass trim. This assembly is powered by an electric actuator and operates with a proportional control signal.

• Body Size: 1-1/4 inch
• Actuator Type: Electric
• Flow Coefficient: 20 cv

Product Highlights

This assembly is suitable for numerous automatic applications. It supports a power input voltage range of 24 VAC/VDC and operates linearly with a force of 220 lbf. The actuator provides a control signal range from two to ten VDC or four to twenty mA DC, ensuring responsive operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Close-Off Pressure: 250 PSI
• Operating Fluid Temperature: -7 to 138 °C
• Protection Rating: NEMA 2
• Electrical Insulation Class: Class II
• Humidity Range: 15-95 % non-condensing
• Stroke Length: NA
• Weight: 7.121 kg
