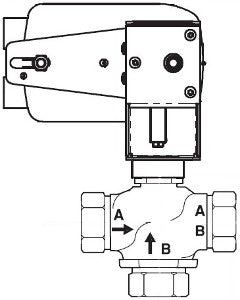

Schneider Electric VS-7323-536-4-09 Globe Valve Assembly 3-Way Diverting

Product Description

The Schneider Electric VS-7323-536-4-09 is a globe valve assembly designed for various applications in fluid control systems. This valve features a body size of one and one-quarter inches with a three-way diverting configuration. It utilizes NPT connections and operates with a stem up flow action from B to AB. This unit is powered by an electric actuator, providing proportional control that can operate within a two to ten VDC or four to twenty mA range.

• Body Material: Brass
• Close-Off Pressure: 75 PSI
• Torque: 35 in-lb

Product Highlights

This globe valve is suitable for various systems where precise flow control is critical. It is important to note that this valve is not intended for steam applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Electrical Insulation Class: Class II
• Ambient Temperature for Operation: -30 to 60 °C
• Tightening Torque: 35 in-lb
• Protection Rating: NEMA 2
• Flow Coefficient: 20 cv
• Seating Seal Material: Metal to metal
