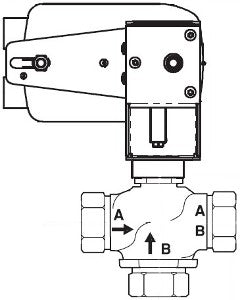

Schneider Electric VS-7323-536-4-08 valve actuator assembly

Product Description

Schneider Electric VS-7323-536-4-08 is a valve actuator assembly designed for various applications in HVAC systems. This product features a one inch body size and a three-way diverting configuration for efficient fluid management.

• Body Size: 1 inch
• Flow Coefficient: 14 cv
• Close-Off Pressure: 125 PSI

Product Highlights

This valve actuator assembly is equipped with an electric actuator, offering proportional control with a range of two to ten VDC. It operates on a power input voltage of twenty-four VAC or VDC. The spring return mechanism ensures reliable performance even in loss of power scenarios.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 3-Way Diverting
• Actuator Type: Electric
• Power Input Voltage: 24 VAC/VDC
• Material Trim: Brass
• Torque: 35 in-lb
• Ambient Air Temperature For Operation: -30 to 60 °C
• Relative Humidity: 5-95 % non-condensing
• Protection Rating: NEMA 2
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Seat Leakage: Port A: Class III (0.1 %)
• Electrical Insulation Class: Class II
• Motor Type: Brushless DC motor
