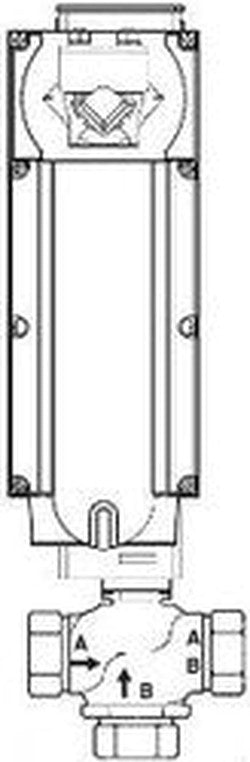

Schneider Electric VS-7313-576-4-11 valve actuator assembly 2 in 3 W Mix Globe NPT

Product Description

The Schneider Electric VS-7313-576-4-11 is a valve actuator assembly designed for reliable control in various applications. This unit features a two-inch body size and is characterized by its three-way mixing configuration. The actuator operates on twenty-four volt alternating current or direct current, making it suitable for a wide variety of installations.

• Body Size: 2 in
• Configuration: 3-Way Mixing
• Torque: 150 in-lb

Product Highlights

This valve actuator assembly is suitable for applications requiring precise flow control. Its compact design allows easy integration into existing systems, while the robust construction ensures long-term performance.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-7313-576-4-11

Technical Specifications

• Flow Coefficient: 41 cv
• Close-Off Pressure: 120 PSI
• Control Signal: Proportional
• Electrical Insulation Class: Class II
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 4
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature For Operation: -31.6 to 60 °C
• Ambient Air Temperature For Storage: -40 to 71 °C
• Valve Body Material: Bronze
• Spring Return Type: Yes
