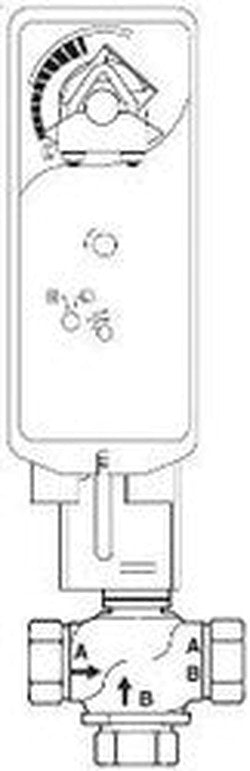

Schneider Electric VS-7313-557-4-10 Valve Assembly 1-1/2 in 3-Way Mixing

Product Description

The Schneider Electric VS-7313-557-4-10 is a valve assembly designed for fluid control in various applications. This model features a body size of one and one-half inches and is configured for three-way mixing. It has a globe type design and NPT connection. The unit is built with a brass material trim and a flow coefficient of twenty-eight cv, making it suitable for many operational needs.

• Body Size: 1-1/2 inches
• Flow Coefficient: 28 cv
• Power Input Voltage: 24 VAC/VDC

Product Highlights

This valve assembly is versatile for automatic control and is suitable for applications that require precise fluid flow regulation. It has an actuator type that is electric, with a control signal range of two to ten VDC and four to twenty mA DC.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing
• Close-Off Pressure: 140 PSI
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5 - 95 % non-condensing
• Actuator Rotation: 100 °
