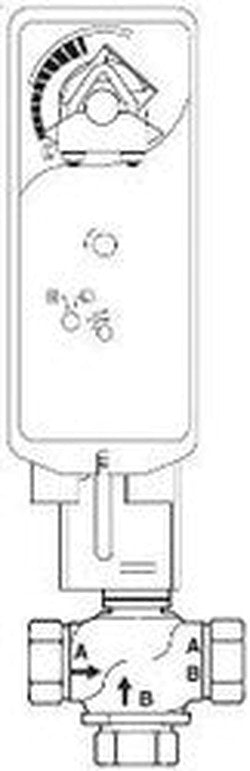

Schneider Electric VS-7313-546-4-11 Valve Actuator Assembly 2 in 3-Way Mixing

Product Description

The Schneider Electric VS-7313-546-4-11 is a valve actuator assembly designed for effective control in various applications. This product features a two-inch body size with a three-way mixing configuration. It is a globe type with NPT connections, suitable for precise flow regulation.

• Body Size: 2 in
• Material Trim: Brass
• Protection Rating: NEMA 1, NEMA 2

Product Highlights

This actuator can handle a flow coefficient of forty-one cv and a close-off pressure of forty PSI. It operates using an electric actuator that requires a power input voltage of twenty-four VAC/VDC. The device is also designed with a spring return mechanism for reliable operation.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-7313-546-4-11

Technical Specifications

• Flow Coefficient: 41 cv
• Actuator Type: Electric
• Control Signal: Proportional
• Power Input Voltage: 24 VAC/VDC
• Torque: 60 in-lb
• Operating Fluid Temperature: -7 to 138 °C
• Relative Humidity: 5-95 % non-condensing
• Ambient Air Temperature For Operation: -30 to 60 °C
