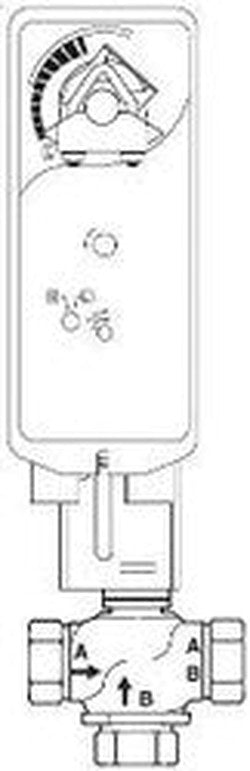

Schneider Electric VS-7313-546-4-10 Valve Actuator Assembly 3-Way Mixing

Product Description

Schneider Electric VS-7313-546-4-10 is a valve actuator assembly designed for effective control in various systems. This unit features a three-way mixing configuration, making it an ideal choice for applications needing precise flow management.

• Body Size: 1-1/2 in
• Flow Coefficient: 28 cv
• Power Input Voltage: 24 VAC/VDC

Product Highlights

This actuator assembly is suitable for HVAC systems and other applications where robust and reliable performance is required. It includes an electric actuator controlled by a proportional signal for reliable operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Type: Globe
• Configuration: 3-Way Mixing
• Connection Type: NPT
• Close-Off Pressure: 80 PSI
• Torque: 60 in-lb
• Control Signal: Proportional 2 to 10 VDC, 4 to 20 mA DC
• Loss of Power Position: A closed
• Protection Rating: NEMA 1, NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Relative Humidity: 5-95% non-condensing
• Ambient Air Temperature for Operation: -30 to 60 °C
• Ambient Air Temperature for Storage: -40 to 71 °C
