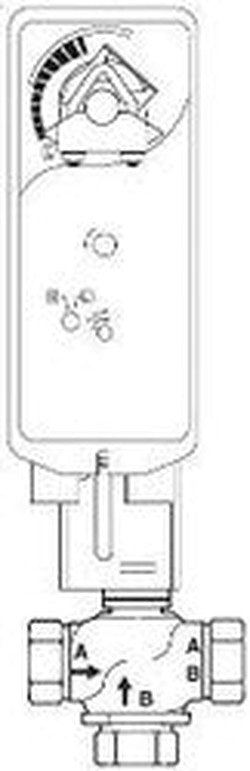

Schneider Electric VS-7313-546-4-09 Valve Assembly 1-1/4 Inch 3-Way Mixing

Product Description

The Schneider Electric VS-7313-546-4-09 valve assembly is designed for reliable flow control in various applications. This product features a body size of one and one quarter inches and operates as a three-way mixing globe valve. The connection type is NPT, making it suitable for standard piping systems. The actuator is electric and designed for 24 VAC/VDC input, ensuring compatibility with many control systems.

• Body Size: 1-1/4 in
• Flow Coefficient: 20 cv
• Control Signal Range: 2 to 10 VDC, 4 to 20 mA

Product Highlights

This valve assembly operates within a temperature range of -7 to 138 degrees Celsius. It has a close-off pressure of 120 PSI, making it suitable for various fluid control tasks. The rotary actuator allows for smooth operation and precise control.

Product Information

Standard Information

• Body Material: Bronze
• Protection Rating: NEMA 1, NEMA 2

Technical Specifications

• Actuator Type: Electric
• Torque: 60 in-lb
• Operating Fluid Temperature: -7 to 138 °C
• IP Degree of Protection: IP10, IP11
• Assembly Components: Includes valve body, linkage, and actuator
• Seating Seal Material: EPDM (Port A)
• Ambient Air Temperature for Operation: -30 to 60 °C
